BMS-23A, HV-Digital, High Speed, Coreless, Titanium Gears
DETAILS
Application
| 1/8, 1/10th Buggy, Truggy, Crawler & 3D Airplane, Helicopter (EP / Gas Engine) |
Specifications
| Torque At 6.0V |
19.2 kg-cm / 266.7 oz-in |
| Torque At 7.4V |
23.6 kg-cm / 327.8 oz-in |
| Torque At 8.4V |
26.8 kg-cm / 372.3 oz-in |
| Speed At 6.0V |
0.076 sec / 60° |
| Speed At 7.4V |
0.063 sec / 60° |
| Speed At 8.4V |
0.052 sec / 60° |
Power Supply
| Operating Voltage Range |
6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe ) |
Standard Full Aluminum Servo
| Control System |
Digital Controller / 12-Bits ( 4096 Steps ) |
| Dead Band Width |
0.001ms ( 1us ) |
Mechanical Specifications
| Ball Bearing |
Dual |
| Gear |
Titanium Alloy Gears |
| Motor |
Premium Coreless Motor |
| Horn / Gear Spline |
25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) |
40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |
| Weight (gram) |
72.0 ± 1 grams / 2.54 oz |

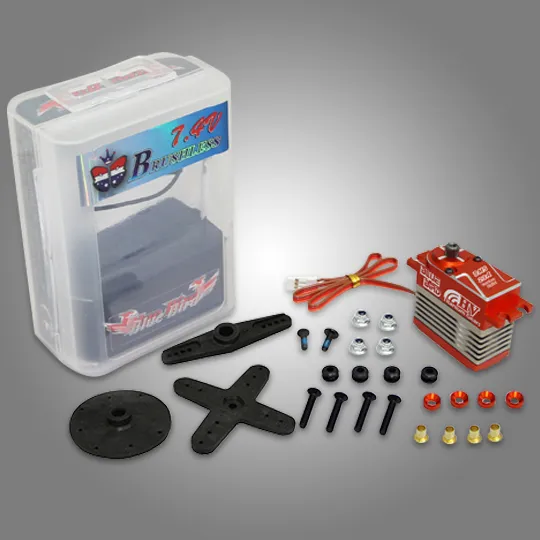

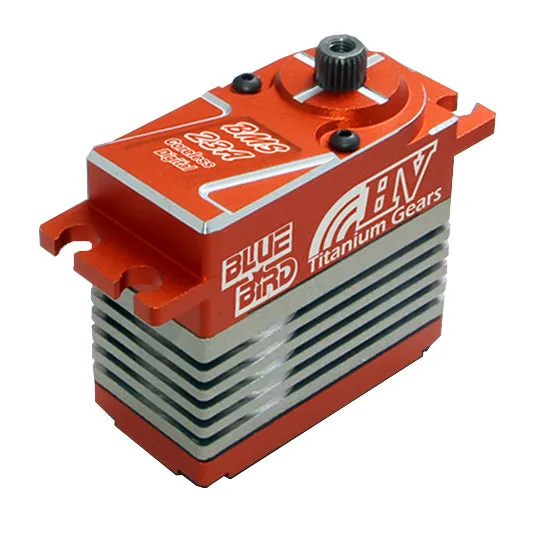

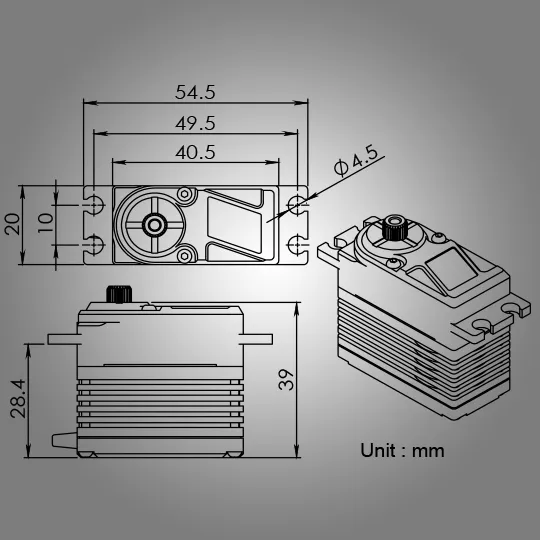

| Product Picture / Dimension Sketch |
|
